DDL6
The capacity is 4×1000ml, and 8 bags of 200ml blood bags or 4 bags of 400-500ml blood bags can be separated at one time.
Mainly used in blood bank, blood station, medical and health, biochemistry, food safety, life science, agriculture and forestry science, animal husbandry science, biological products, pharmaceutical products and other fields of ideal equipment for the separation and precipitation of samples and concentrated preparation.
● Using a high torque brushless variable frequency motor ensures that the centrifuge is maintenance free, dust-free, and has a fast lifting speed.
● The flexible shaft drive system directly drives the rotor to protect the motor, with precise speed control, stable operation, low vibration and low noise.
● Induction automatic electric suction door lock, and emergency door opening device; self-check and protection of door lock, overspeed, overtemperature, unbalance, etc., safe and reliable.
● Imported customized specially equipped with fluorine-free compressor unit, high-quality copper tube wrapped in centrifugal cavity, full tin welding technology, double-circulation pipeline, greatly improving refrigeration efficiency, can be reduced from room temperature 25 ℃ to 4 ℃ within 4 minutes; use "automatic constant temperature control system to adjust Technology" precise temperature control.
● Microcomputer processor precise control, there are LED display version, button programming; there is also a high-definition touch screen "intelligent system" version.
● 10 sets of common programs can be stored and recalled, 10 sets of acceleration rates and 10 sets of deceleration rates for users to choose flexibly to achieve the best centrifugal effect.
● The whole machine is all-steel structure, 304 stainless steel centrifugal chamber, multi-layer protection design, safe and reliable; three-stage vibration reduction, automatic balance function.
● The door cover of the instrument is equipped with double hydraulic rods to reduce the operation load; the front operation panel, the door cover is opened backwards, which is ergonomic and comfortable to operate.
● Passed ISO9001, ISO13485, CE certifications and so on.

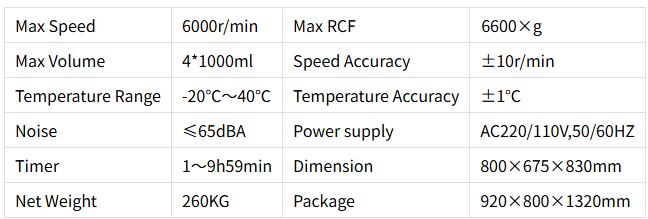

Max Speed | 6000r/min | Max RCF |
|
Max Volume | 4*1000ml | Speed Accuracy | ±10r/min |
Temperature Range | -20℃～40℃ | Temperature Accuracy | ±1℃ |
Noise | ≤65dBA | Power supply | AC220/110V,50/60HZ |
Timer | 1～9h59min | Dimension | 800×675×830mm |
Net Weight | 260KG | Package | 920×800×1320mm |

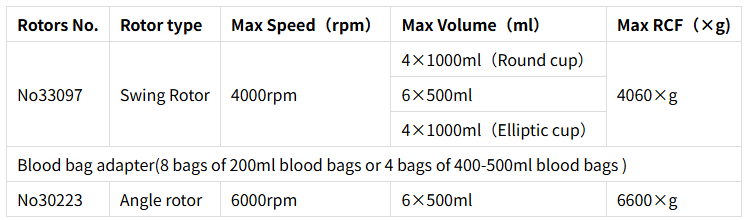

Rotors No. | Rotor type | Max Speed（rpm） | Max Volume（ml） | Max RCF（×g) |
No33097 | Swing Rotor | 4000rpm | 4×1000ml（Round cup） | 4060×g |
6×500ml | ||||
4×1000ml（Elliptic cup） | ||||
Blood bag adapter(8 bags of 200ml blood bags or 4 bags of 400-500ml blood bags ) | ||||
No30223 | Angle rotor | 6000rpm | 6×500ml | 6600×g |
The capacity is 4×1000ml, and 8 bags of 200ml blood bags or 4 bags of 400-500ml blood bags can be separated at one time.
Mainly used in blood bank, blood station, medical and health, biochemistry, food safety, life science, agriculture and forestry science, animal husbandry science, biological products, pharmaceutical products and other fields of ideal equipment for the separation and precipitation of samples and concentrated preparation.
● Using a high torque brushless variable frequency motor ensures that the centrifuge is maintenance free, dust-free, and has a fast lifting speed.
● The flexible shaft drive system directly drives the rotor to protect the motor, with precise speed control, stable operation, low vibration and low noise.
● Induction automatic electric suction door lock, and emergency door opening device; self-check and protection of door lock, overspeed, overtemperature, unbalance, etc., safe and reliable.
● Imported customized specially equipped with fluorine-free compressor unit, high-quality copper tube wrapped in centrifugal cavity, full tin welding technology, double-circulation pipeline, greatly improving refrigeration efficiency, can be reduced from room temperature 25 ℃ to 4 ℃ within 4 minutes; use "automatic constant temperature control system to adjust Technology" precise temperature control.
● Microcomputer processor precise control, there are LED display version, button programming; there is also a high-definition touch screen "intelligent system" version.
● 10 sets of common programs can be stored and recalled, 10 sets of acceleration rates and 10 sets of deceleration rates for users to choose flexibly to achieve the best centrifugal effect.
● The whole machine is all-steel structure, 304 stainless steel centrifugal chamber, multi-layer protection design, safe and reliable; three-stage vibration reduction, automatic balance function.
● The door cover of the instrument is equipped with double hydraulic rods to reduce the operation load; the front operation panel, the door cover is opened backwards, which is ergonomic and comfortable to operate.
● Passed ISO9001, ISO13485, CE certifications and so on.
Max Speed | 6000r/min | Max RCF |
|
Max Volume | 4*1000ml | Speed Accuracy | ±10r/min |
Temperature Range | -20℃～40℃ | Temperature Accuracy | ±1℃ |
Noise | ≤65dBA | Power supply | AC220/110V,50/60HZ |
Timer | 1～9h59min | Dimension | 800×675×830mm |
Net Weight | 260KG | Package | 920×800×1320mm |
Rotors No. | Rotor type | Max Speed（rpm） | Max Volume（ml） | Max RCF（×g) |
No33097 | Swing Rotor | 4000rpm | 4×1000ml（Round cup） | 4060×g |
6×500ml | ||||
4×1000ml（Elliptic cup） | ||||
Blood bag adapter(8 bags of 200ml blood bags or 4 bags of 400-500ml blood bags ) | ||||
No30223 | Angle rotor | 6000rpm | 6×500ml | 6600×g |
