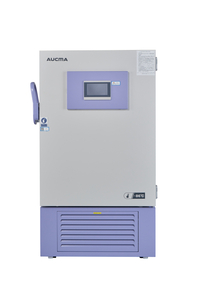

DW-86L390 -86℃ Ultra-Low Temperature Biomedical Freezer

Availability:
Quantity:
  • DW-86L390

  • Aucma


-86℃ ULT Freezer

DW-86L390

456a447ad1ea8a2cdb3dd03c



Application Scope


  • Suitable for hospital, blood-bank, center for Disease Prevention, scientific research institution, bioengineering, Animal Husbandry industry, pelagic fishery, electronic and chemical industry, etc.

  • Used for the refrigeration of red and white cell, skin, skeleton, germ, virus, seminal fluid, biological products and for low temperature testing of electron devices and special materials.


Temperature Control System


  • Controlled by micro-computer, LCD display, touched screen.

  • The inner temperature can be adjusted at the range of -40℃~-86℃; the temperature regulation accuracy is 0.1℃.


Security Control System


  • Multi malfunction alarms: high temperature alarm, low temperature alarm, sensor malfunction alarm, condenser dirty alarm, low battery alarm, power failure alarm, over pressure alarm, over ambient temperature alarm, open the door alarm and so on for safe use.

  • Data logging: historical alarm information and derived data can be checked. All historical data can be stored for more than 10 years.

  • Three alarming methods: buzzer alarming, independent icon alarming, and remote alarming.

  • Protection function: compressor power-on delay protection, time between power off; overpressure protection, password protection and normal operation protection under failure mode. Password protection can prevent parameters from being changed randomly.

  • Intelligent display: display screen with running indication and communication status indication can show real-time operation of the freezer.

  • Safety protection: the power switch has two-way fuse over-current protection, together with the power-on indicator light ensure safety.


Refrigeration System


  • Optimized cascade refrigeration technology, special evaporation system and condensation system, strong refrigerating efficiency.

  • International famous brand compressor and EBM fan electromotor and oil separator, stable product performance, strong refrigerating efficiency.

  • Enhanced sealing design: double door seal.

  • Heating-free pressure-balanced valve (patent), easy to open the door, keep the cold air and avoid the freezer on fire.


Humanized Design


  • Unique handle design: the door can be opened by both hands; individual press lock on the handle and 2 padlocks;

  • Detachable handle helps the freezer go through the narrow doors;

  • Wide voltage design: the freezer work stably under 198-254V;

  • The temperature curve and history data are recorded and shown, and data can be derived;

  • Locking press-out dust screen simplifies and facilitates maintenance of the freezer;

  • Thermometer holes design for temperature examination.


Model

Capacity

(L)

Inner   Temperature

(℃)

Voltage

(V/Hz)

Interior   Dimension

(mm)(W*D*H)

Exterior Dimension

(mm)(W*D*H)

Package Dimension

(mm)(W*D*H)


Shelf

(pc)

Power

(W)

Net/Gross   Weight

(Kg)

DW-86L66

66

-40~-86

~220V/50

320*480*430

850*760*762

931*841*895

1

400

120/150

DW-86L102

102

-40~-86

~220V/50

450*540*430

1130*875*770

1210*972*840

1

558

160/194

DW-86L290

290

-40~-86

~220V/50

620*515*920

955*875*1660

1000*940*1718

2

940

244/272

DW-86L348

348

-40~-86

~220V/50

465*624*1186

800*980*1925

830*1050*1990

3

1000

242/267

DW-86L390

390

-40~-86

~220V/50

620*515*1200

955*875*1940

1000*940*1998

3

1133

280/310

DW-86L500

500

-40~-86

~220V/50

620*655*1200

955*1015**1940

1000*1084*1998

3

1200

298/330

DW-86L630

630

-40~-86

~220V/50

810*655*1200

1145*1015*1940

1190*1084*1998

3

1200

339/375

DW-86L800

800

-40~-86

~220V/50

1020*616*1258

1360*960*2000

1400*1040*2070

3

1200

377/419

DW-86L930

930

-40~-86

~220V/50

1020*726*1258

1360*1070*2000

1400*1150*2070

3

1200

417/459

DW-86W102

102

-40~-86

~220V/50

460*720*1310

1110*800*890

1210*812*963

-

558

150/183

DW-86W150

150

-40~-86

~220V/50

590*720*1310

1250*850*970

1360*865*1003

-

700

190/217

DW-86W300

300

-40~-86

~220V/50

740*720*1310

1425*875*970

1530*890*1003

-

1000

203/222

DW-86L437T

437

-40~-86

~220V/50

460*720*1310

790*1070*1990

875*1144*2100

3

1300

300/330

DW-86L567T

567

-40~-86

~220V/50

590*720*1310

920*1070*1990

1005*1144*2100

3

1450

317/395

DW-86L707T

707

-40~-86

~220V/50

740*720*1310

1070*1070*1990

1155*1144*2100

3

1600

359/395
