YXQ-50A/70A/100A/50G/70G/100G
· Made of SUS304
· Handwheel type quick-open cover
· Microcomputer intelligent control
· Self expanding type seal ring
· Exhaust cold air automatically
· Inner circulation exhaust
· Self-control when lack of water; Self-exhaust when over pressure; Pressure safety interlock; Over temperature protection
· Buzzer reminds when sterilization ends
· Equipped with G1/2A internal thread sample test hole
a. heating – sterilization - quick exhaust
b. heating – sterilization - slow exhaust
c. heating – sterilization - no exhaust
· Melting temperature: 60-98 ℃, melting time: 0-999min
· Holding temperature: 40-60 ℃, holding time: 0-999min
· Drying function
· Made of SUS304
· Handwheel type quick-open cover
· Microcomputer intelligent control
· Self expanding type seal ring
· Exhaust cold air automatically
· Inner circulation exhaust
· Self-control when lack of water; Self-exhaust when over pressure; Pressure safety interlock; Over temperature protection
· Buzzer reminds when sterilization ends
· Equipped with G1/2A internal thread sample test hole
a. sterilization - natural cooling
b. sterilization- automatic exhaust
c. sterilization-exhaust-drain-drying
· Melting temperature: 60-98 C, melting time: 0-999min
· Holding temperature: 40-60 C, holding time: 0-999min

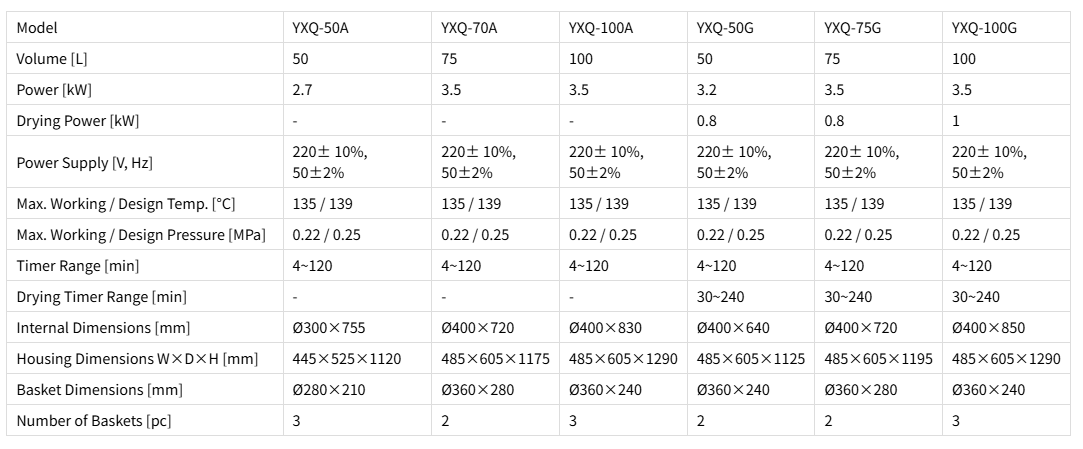

Model | YXQ-50A | YXQ-70A | YXQ-100A | YXQ-50G | YXQ-75G | YXQ-100G |
Volume [L] | 50 | 75 | 100 | 50 | 75 | 100 |
Power [kW] | 2.7 | 3.5 | 3.5 | 3.2 | 3.5 | 3.5 |
Drying Power [kW] | - | - | - | 0.8 | 0.8 | 1 |
Power Supply [V, Hz] | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% |
Max. Working / Design Temp. [°C] | 135 / 139 | 135 / 139 | 135 / 139 | 135 / 139 | 135 / 139 | 135 / 139 |
Max. Working / Design Pressure [MPa] | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 |
Timer Range [min] | 4~120 | 4~120 | 4~120 | 4~120 | 4~120 | 4~120 |
Drying Timer Range [min] | - | - | - | 30~240 | 30~240 | 30~240 |
Internal Dimensions [mm] | Ø300×755 | Ø400×720 | Ø400×830 | Ø400×640 | Ø400×720 | Ø400×850 |
Housing Dimensions W×D×H [mm] | 445×525×1120 | 485×605×1175 | 485×605×1290 | 485×605×1125 | 485×605×1195 | 485×605×1290 |
Basket Dimensions [mm] | Ø280×210 | Ø360×280 | Ø360×240 | Ø360×240 | Ø360×280 | Ø360×240 |
Number of Baskets [pc] | 3 | 2 | 3 | 2 | 2 | 3 |
· Made of SUS304
· Handwheel type quick-open cover
· Microcomputer intelligent control
· Self expanding type seal ring
· Exhaust cold air automatically
· Inner circulation exhaust
· Self-control when lack of water; Self-exhaust when over pressure; Pressure safety interlock; Over temperature protection
· Buzzer reminds when sterilization ends
· Equipped with G1/2A internal thread sample test hole
a. heating – sterilization - quick exhaust
b. heating – sterilization - slow exhaust
c. heating – sterilization - no exhaust
· Melting temperature: 60-98 ℃, melting time: 0-999min
· Holding temperature: 40-60 ℃, holding time: 0-999min
· Drying function
· Made of SUS304
· Handwheel type quick-open cover
· Microcomputer intelligent control
· Self expanding type seal ring
· Exhaust cold air automatically
· Inner circulation exhaust
· Self-control when lack of water; Self-exhaust when over pressure; Pressure safety interlock; Over temperature protection
· Buzzer reminds when sterilization ends
· Equipped with G1/2A internal thread sample test hole
a. sterilization - natural cooling
b. sterilization- automatic exhaust
c. sterilization-exhaust-drain-drying
· Melting temperature: 60-98 C, melting time: 0-999min
· Holding temperature: 40-60 C, holding time: 0-999min
Model | YXQ-50A | YXQ-70A | YXQ-100A | YXQ-50G | YXQ-75G | YXQ-100G |
Volume [L] | 50 | 75 | 100 | 50 | 75 | 100 |
Power [kW] | 2.7 | 3.5 | 3.5 | 3.2 | 3.5 | 3.5 |
Drying Power [kW] | - | - | - | 0.8 | 0.8 | 1 |
Power Supply [V, Hz] | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% | 220± 10%, 50±2% |
Max. Working / Design Temp. [°C] | 135 / 139 | 135 / 139 | 135 / 139 | 135 / 139 | 135 / 139 | 135 / 139 |
Max. Working / Design Pressure [MPa] | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 | 0.22 / 0.25 |
Timer Range [min] | 4~120 | 4~120 | 4~120 | 4~120 | 4~120 | 4~120 |
Drying Timer Range [min] | - | - | - | 30~240 | 30~240 | 30~240 |
Internal Dimensions [mm] | Ø300×755 | Ø400×720 | Ø400×830 | Ø400×640 | Ø400×720 | Ø400×850 |
Housing Dimensions W×D×H [mm] | 445×525×1120 | 485×605×1175 | 485×605×1290 | 485×605×1125 | 485×605×1195 | 485×605×1290 |
Basket Dimensions [mm] | Ø280×210 | Ø360×280 | Ø360×240 | Ø360×240 | Ø360×280 | Ø360×240 |
Number of Baskets [pc] | 3 | 2 | 3 | 2 | 2 | 3 |
