TD6C
The desktop low-speed centrifuge series is mainly used in biology, medicine, chemistry, physics and other laboratories. It is an ideal instrument for the analysis of serum, plasma, urine, radioim munoassay and other items.
● Equipped with an all-steel multi-layer explosion-proof structure, and stainless steel centrifugal cavity.
● Driven by maintenance-free DC variable frequency motor, running smoothly and quietly.
● Using a microcomputer processor for precise control and easy operation with a digital display.
● The Reactive Centrifugal Force (RCF) value is calculated automatically; switching between speed and RCF only requires pressing a button.
● 10 acceleration rates and 10 deceleration rates are available for optimal centrifugal effect.
● The mute electronic door lock is easy to use and the centrifuge has an emergency door opening function.
● With small size and low cover height, saving laboratory space.
● With self-diagnostic error function.
● Certified by ISO 9001, ISO 13485, CE.

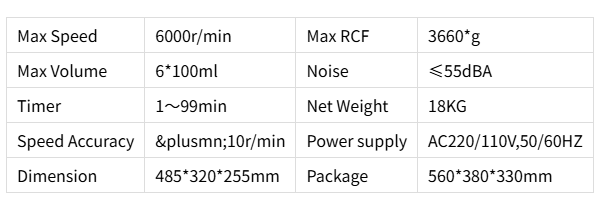

Max Speed | 6000r/min | Max RCF | 3660*g |
Max Volume | 6*100ml | Noise | ≤55dBA |
Timer | 1~99min | Net Weight | 18KG |
Speed Accuracy | ±10r/min | Power supply | AC220/110V,50/60HZ |
Dimension | 485*320*255mm | Package | 560*380*330mm |

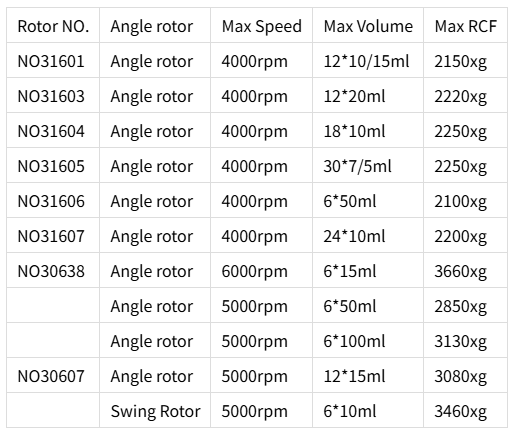

Rotor NO. | Angle rotor | Max Speed | Max Volume | Max RCF |
NO31601 | Angle rotor | 4000rpm | 12*10/15ml | 2150xg |
NO31603 | Angle rotor | 4000rpm | 12*20ml | 2220xg |
NO31604 | Angle rotor | 4000rpm | 18*10ml | 2250xg |
NO31605 | Angle rotor | 4000rpm | 30*7/5ml | 2250xg |
NO31606 | Angle rotor | 4000rpm | 6*50ml | 2100xg |
NO31607 | Angle rotor | 4000rpm | 24*10ml | 2200xg |
NO30638 | Angle rotor | 6000rpm | 6*15ml | 3660xg |
Angle rotor | 5000rpm | 6*50ml | 2850xg | |
Angle rotor | 5000rpm | 6*100ml | 3130xg | |
NO30607 | Angle rotor | 5000rpm | 12*15ml | 3080xg |
Swing Rotor | 5000rpm | 6*10ml | 3460xg |
