PT5BS Heating Centrifuge for Crude Oil

Availability:
Quantity:
  • PT5BS

  • Aucma


Image_20250303102512

PT5BS Heating Centrifuge

Heating Centrifuge is designed for the determination of water and sediment in crude oil (centrifugation). In line with the requirements of GB/T6533-86 standard, the water and sediment in crude oil are determined by centrifugal separation method. It is an ideal equipment for the oil extraction industry and petroleum scientific research units to measure the water content of the produced fluid (that is, the water-containing crude oil) in the oil field production process.




Features:

High-definition touch screen "intelligent system", the display interface simultaneously displays the speed, running time,temperature.

Screen brightness, heating efficiency, prompt volume, and other data can be personalized by users.

Can store and call 100 sets of programs, with 9 acceleration rates and 10 deceleration rate options.

Adopt large torque brushless frequency conversion motor, easy to operate; maintenance-free, no dust, fast lifting speed, greatly improving work efficiency.

Adopt ring heater, heating quickly, temperature uniform, with temperature control and constant temperature function, to meet the oil industry's requirements for centrifuge temperature.

Automatic electric induction door lock, emergency door opening function; automatic protection for overspeed and unbalance; the body adopts high-quality steel structure, built-in stainless steel explosion-proof protection inner sleeve, stainless steel centrifugal cavity, three-layer protection, safe and reliable.

It is equipped with a fault self-diagnosis system, which can automatically detect various faults such as overspeed, overtemperature, unbalance, door cover self-locking, etc., and display the fault information in the display window to improve the safety performance of the instrument.

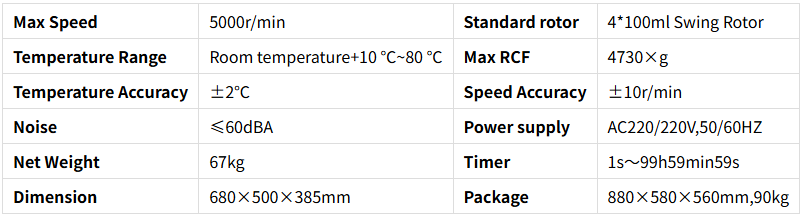

PT5BS Technical Parameters

Max Speed

5000r/min

Standard rotor

4*100ml Swing Rotor

Temperature Range

Room temperature+10 ℃~80 ℃

Max RCF

4730×g

Temperature Accuracy

±2℃

Speed Accuracy

±10r/min

Noise

≤60dBA

Power supply

AC220/220V,50/60HZ

Net Weight

67kg

Timer

1s~99h59min59s

Dimension

680×500×385mm

Package

880×580×560mm,90kg

Image_20250303102525

4×100ml Swing Rotor(2000rpm, 957×g)


Image_20250303102531

100ml Oil Tube
