TD4N
The desktop low-speed centrifuge series is mainly used in biology, medicine, chemistry, physics and other laboratories. It is an ideal instrument for the analysis of serum, plasma, urine, radioimmunoassay and other items.

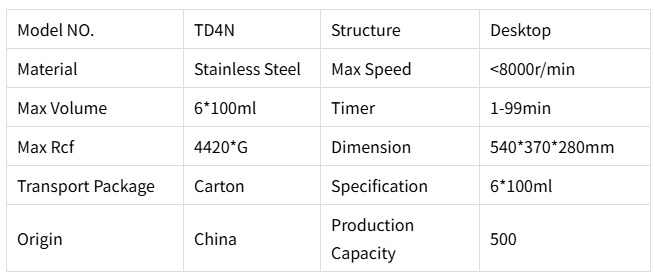

| Model NO. | TD4N | Structure | Desktop |
| Material | Stainless Steel | Max Speed | <8000r/min |
| Max Volume | 6*100ml | Timer | 1-99min |
| Max Rcf | 4420*G | Dimension | 540*370*280mm |
| Transport Package | Carton | Specification | 6*100ml |
| Origin | China | Production Capacity | 500 |
Packaging & Delivery
| Package Size | 60.00cm*43.50cm*34.00cm |
| Package Gross Weight | 40.000kg |
● All-steel multi-layer explosion-proof structure, stainless steel centrifugal
cavity.
● Maintenance-free DC variable frequency motor drive, smooth and quiet
operation.
● Microcomputer processor precise control, digital display, easy operation,
automatic calculation of centrifugal force RCF value, speed and centrifugal
force can be switched with each other by one key.
● 10-speed acceleration and deceleration control, booting is the last
used program.
● The mute electronic door lock is easy to use and has an emergency
door opening function.
● Small size and low cover height, saving laboratory space.
● Door lock, overspeed and imbalance automatic protection，Self-diagnostic error.
● Passed ISO 9001, ISO 13485, CE certification.

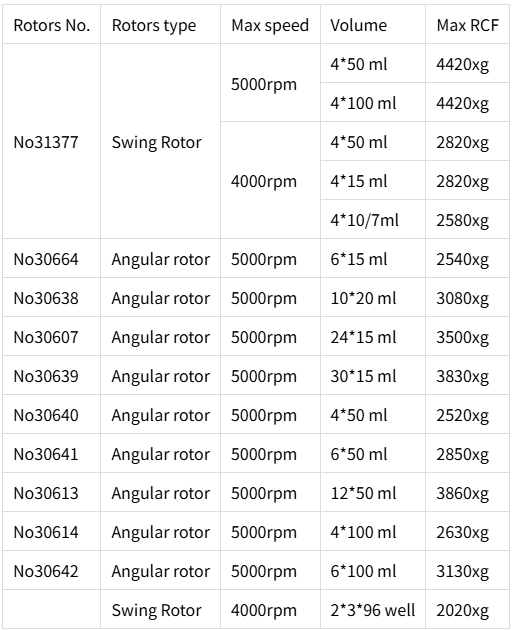

Rotors No. | Rotors type | Max speed | Volume | Max RCF | |||
No31377 | Swing Rotor | 5000rpm | 4*50 ml | 4420xg | |||
4*100 ml | 4420xg | ||||||
4000rpm | 4*50 ml | 2820xg | |||||
4*15 ml | 2820xg | ||||||
4*10/7ml | 2580xg | ||||||
No30664 | Angular rotor | 5000rpm | 6*15 ml | 2540xg | |||
No30638 | Angular rotor | 5000rpm | 10*20 ml | 3080xg | |||
No30607 | Angular rotor | 5000rpm | 24*15 ml | 3500xg | |||
No30639 | Angular rotor | 5000rpm | 30*15 ml | 3830xg | |||
No30640 | Angular rotor | 5000rpm | 4*50 ml | 2520xg | |||
No30641 | Angular rotor | 5000rpm | 6*50 ml | 2850xg | |||
No30613 | Angular rotor | 5000rpm | 12*50 ml | 3860xg | |||
No30614 | Angular rotor | 5000rpm | 4*100 ml | 2630xg | |||
No30642 | Angular rotor | 5000rpm | 6*100 ml | 3130xg | |||
Swing Rotor | 4000rpm | 2*3*96 well | 2020xg | ||||
Max Speed | 5000r/min | ||||||
Max Volume | 6*100ml | ||||||
Timer | 1～99min | ||||||
Speed Accuracy | ±10r/min | ||||||
Dimension | 540*370*280mm | ||||||
Max RCF | 4420xg | ||||||
Noise | ≤58dBA | ||||||
Net Weight | 35KG | ||||||
Power supply | AC220/220V,50/60HZ | ||||||
Package | 600*435*340mm | ||||||
